R100GS (47E1) | Engine

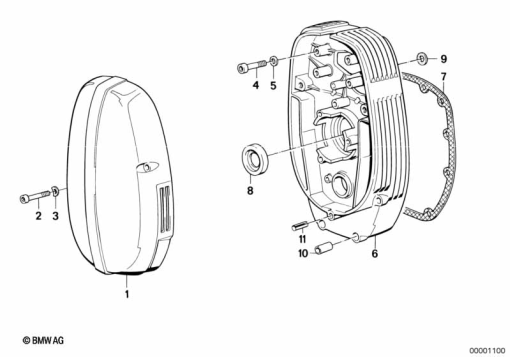

PROTECTING COVER - CHAIN COVER
Diagram #11_1693 | 15 parts | 2 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 1 335 024 | WHEATHER PROTECTION CAP | 1 | |
| 2 | 46 61 2 322 495 | FILLISTER-HEAD SCREW - M6X45-8.8 ZNS | 1 | |
| 3 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 3 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 3 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 3 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 4 | 07 12 9 903 809 | ISA SCREW - M6X40 | 1 | |
| 5 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | 1 | |
| 6 | 11 14 1 337 349 | BLACK TIMING CASE COVER | 1 | |
| 7 | 11 14 1 338 428 | GASKET | 1 | |
| 8 | 11 14 1 337 654 | SHAFT SEAL - 28X47X7 | 1 | |
| 8 | 11 14 1 337 654 | SHAFT SEAL | 1 | |
| 9 | 11 14 1 338 429 | WASHER-GASKET | 1 | |
| 10 | 11 14 1 252 311 | 0.02 | 1 | |
| 11 | 07 11 9 941 485 | ROLL PIN - 6X16 | 1 |
