R100GS (47E1) | Engine

COVER PANEL / ENGINE VENTILATION

Diagram #11_1694 | 21 parts

100%

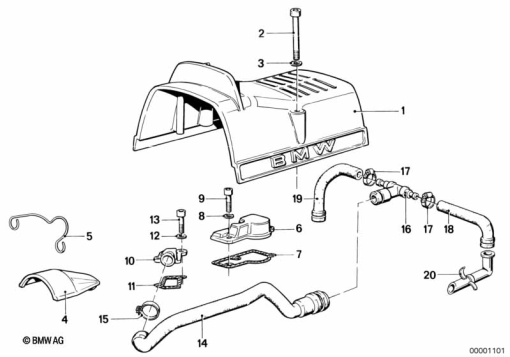

R100GS (47E1) COVER PANEL / ENGINE VENTILATION exploded view parts diagram

Parts List (21)

#Part NumberDescriptionQty
1
11 14 1 337 481
COVER - "SLS"-
2
07 12 9 905 539
ISA SCREW - M6X50-8.8-ZNNIV-
3
07 11 9 932 0701
SS 6MM WASHER-
07 11 9 932 073
SPRING WASHER BLACK - B6-ZNAlternative for position 3-
07 11 9 932 073
BLACK SPRING WASHERAlternative for position 3-
07 11 9 936 439
WASHER - 5.3-140 HV-ZNSAlternative for position 3-
6
11 15 1 265 183
COVER-
7
11 15 1 338 430
GASKET-
8
07 11 9 932 098
WAVE WASHER - B5-
9
07 11 9 920 057
FILLISTER-HEAD SCREW - M5X20-8.8 ZNS-
10
11 15 1 265 261
COVER-
11
11 15 1 338 432
GASKET-
12
07 11 9 932 098
WAVE WASHER - B5-
13
07 11 9 920 057
FILLISTER-HEAD SCREW - M5X20-8.8 ZNS-
14
11 15 1 337 258
VENT HOSE-
15
11 15 1 460 935
HOSE CLAMP - D=19MM-
16
13 72 1 337 108
DISTRIBUTION PIECE-
17
13 72 1 337 342
HOSE CLAMP - SLS-
18
13 72 1 337 511
VENT HOSE, LEFT-
19
13 72 1 337 512
VENT HOSE, RIGHT-
20
13 72 1 337 492
EXTENSION-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
