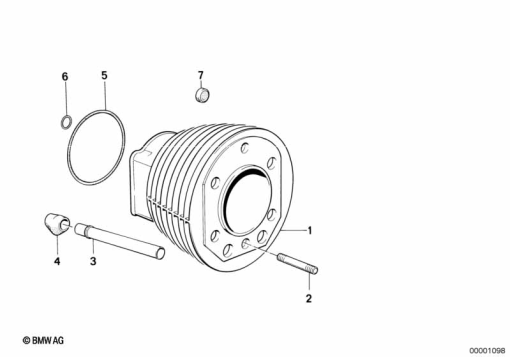

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 1100103 | R100 REPLACE KIT W/TUBES | - | |
1101100 | BIG BORE KIT 1070Alternative for position 1 | - | ||
11 11 1 337 251 | "NIKASIL"-CYLINDER - D=94Alternative for position 1 | - | ||
| 2 | 07 12 9 908 174 | STUD BOLT - M10X50-8.8-PHR | - | |
| 3 | 11 11 1 262 904 | PROTECTION TUBE - D=17.8MM | - | |
11 11 1 262 9041 | SS PUSHROD TUBE D=17.8 1976-1995Alternative for position 3 | - | ||
| 4 | 11 32 1 262 995 | SEAL | - | |
| 5 | 11 11 1 337 567 | O-RING - 93X2.2 | - | |
| 6 | 11 11 1 262 141 | O-RING - 11X2 | - | |
| 7 | 11 12 1 337 818 | PUSHROD SEAL | - |
