R100GS (47E1) | Engine

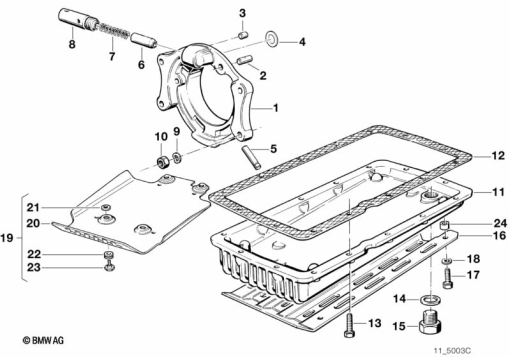

BEARING COVER/OIL PAN/AGGREGATE GUARD
Diagram #11_1689 | 30 parts | 2 available in shop
100%
Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 1 337 293 | BEARING COVER | 1 | |
| 2 | 07 11 9 942 050 | DOWEL PIN - 4X10 | 1 | |
| 3 | 11 11 1 744 326 | PLUG | 1 | |
| 4 | 07 11 9 932 412 | COVER LID - D=16MM | 1 | |
| 5 | 11 11 1 253 184 | 0.03 | 1 | |
| 6 | 11 42 1 271 320 | PISTON | 1 | |
| 7 | 11 41 1 744 324 | COMPRESSION SPRING | 1 | |
| 8 | 11 11 1 335 299 | HOLLOW BOLT | 1 | |
| 9 | 07 11 9 932 093 | WAVE WASHER - B8 | 1 | |
| 9 | 07 11 9 932 095 | WAVE WASHER | 1 | |
| 10 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 02/96) | 1 | |
| 10 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | 1 | |
| 11 | 11 13 1 337 330 | OIL PAN | 1 | |
| 12 | 11 13 1 338 427 | GASKET | 1 | |
| 12 | 11 13 1 338 427S | GASKET OIL PAN | 1 | |
| 13 | 07 11 9 904 527 | HEX BOLT WITH WASHER - M6X20 | 1 | |
| 14 | 07 11 9 963 300 | GASKET RING - A18X22-AL | 1 | |
| 15 | 07 11 9 905 428 | SCREW PLUG - M18X1,5-ZNNIV | 1 | |
| 16 | 51 47 1 242 295 | PROTECTION PLATE | 1 | |
| 17 | 07 11 9 904 357 | HEX BOLT - M6X16-8.8-ZNS3 | 1 | |
| 15 | 07 11 9 905 428M | DRAIN PLUG W/ MAGNET | 1 | |
| 18 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 18 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 19 | 51 47 2 315 392 | SET: INSTAL.SET AGGREGATE LOWER PROTECT.FRONT | 1 | |
| 18 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 18 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 20 | 71 60 2 315 345 | SUMP GUARD LARGE | 1 | |
| 21 | 07 14 6 977 329 | WASHER - 6,4X25X1,5 | 1 | |
| 22 | 46 63 1 451 277 | RUBBER GROMMET | 1 | |
| 23 | 51 47 2 315 059 | SCREW | 1 |
