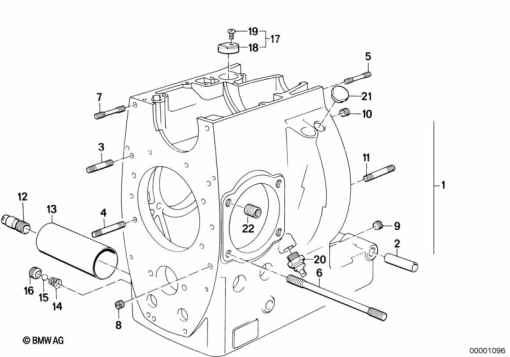

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 1 338 446 | ENGINE HOUSING, OIL COOLER - SEHD | - | |
| 2 | 11 11 1 259 620 | SPACER TUBE - 108MM | - | |
11 11 1 337 670 | SPACER TUBE - 110MMAlternative for position 2 | - | ||
| 3 | 07 12 9 908 130 | STUD BOLT - M8X35-8.8-PHR | - | |
| 5 | 07 11 9 901 033 | FILLISTER-HEAD SCREW - M8X45-8.8 | - | |
| 6 | 11 11 1 257 397 | STUD BOLT - M10X275-10.9 | - | |
11 11 1 265 195 | STUD BOLT - M10X297-10.9Alternative for position 6 | - | ||
| 7 | 11 11 1 252 310 | STUD BOLT - M6/M8X50-8.8-ZN | - | |
| 8 | 11 11 1 250 188 | BLIND PLUG - M8 | - | |
| 9 | 11 11 1 338 645 | BLIND PLUG - M12X1 (to 07/91) | - | |
| 10 | 07 11 9 937 281 | COVER LID - D=25MM | - | |
| 11 | 07 11 9 941 433 | ROLL PIN - 4X26-ST | - | |
| 12 | 11 42 1 335 387 | OIL COOLER PIPE - L=162MM | - | |
| 13 | 11 11 1 338 203 | STEERING COLUMN TUBE | - | |
| 14 | 11 11 1 337 576 | COMPRESSION SPRING - L = 16MM | - | |
| 15 | 07 11 9 986 280 | BALL - 8G20 | - | |
| 16 | 11 11 1 337 733 | BLIND PLUG - M14X1.5 | - | |
| 17 | 11 11 1 335 712 | NON-RETURN VALVE | - | |
| 18 | 11 11 1 335 711 | DIAPHRAGM | - | |
| 19 | 07 11 9 907 602 | FILLISTER HEAD SCREW - M3X8-4.8-H-ZN | - | |
| 20 | 61 31 1 243 414 | OIL PRESSURE SWITCH - M12X1.5 | - | |
| 21 | 11 11 1 744 327 | PLUG, BLACK | - | |
| 22 | 11 11 1 338 630 | THREADED PLUG - M 10 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
