R12 nineT 22 (KR1) | Rear Axle & Suspension

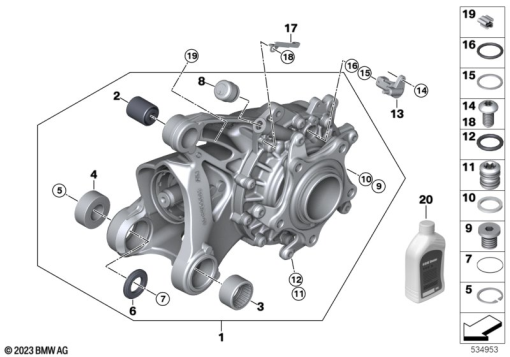

RIGHT-ANGLE GEARBOX WITH VENT
Diagram #33_3418 | 23 parts | 3 available in shop
100%
Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 74 8 863 046 | ANGULAR GEARBOX WITH VENTING, BLACK - I=32:11=2.91 | 1 | |
| 2 | 33 35 8 382 788 | RUBBER MOUNTING | 1 | |
| 3 | 33 11 7 684 640 | NEEDLE SLEEVE | 1 | |
| 4 | 33 11 7 665 037 | ANGULAR BALL BEARING | 1 | |
| 5 | 07 11 9 905 077 | LOCK RING - 42X1,75 | 1 | |
| 6 | 33 17 7 672 817 | SPACER RING | 1 | |
| 7 | 07 11 9 904 693 | O-RING - 34X1 | 1 | |
| 8 | 23 00 7 693 739 | BREATHER (to 01/23) | 1 | |
| 8 | 33 74 8 864 458 | BREATHER | 1 | |
| 9 | 07 11 9 904 550 | SCREW PLUG - M12X1,5-ZNNIV | 1 | |
| 10 | 07 11 9 963 132 | GASKET RING - A12X16-CU | 1 | |
| 11 | 33 11 7 705 854 | OIL DRAIN PLUG - M12X1-ZNNIVSI | 1 | |
| 12 | 33 11 7 695 219 | O-RING - 11,2X1,8 | 1 | |
| 13 | 34 52 1 690 046 | WHEEL SPEED SENSOR | 1 | |
| 14 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | 1 | |
| 15 | 33 11 7 707 796 | CENTERING RING | 1 | |
| 16 | 34 52 7 708 523 | O-RING - 15X2 | 1 | |
| 17 | 34 52 8 527 860 | SENSOR CABLE BRACKET | 1 | |
| 18 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | 1 | |
| 19 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | 1 | |
| 20 | 83 22 2 471 423 | HYPOID AXLE OIL G3 - 60L | 1 | |
| 20 | 83 22 2 471 424 | HYPOID AXLE OIL G3 - 1000ML, TU | 1 | |
| 20 | 83 22 2 460 128 | HYPOID AXLE OIL G3 - 0,5L | 1 |
