R12 nineT 22 (KR1) | Rear Axle & Suspension

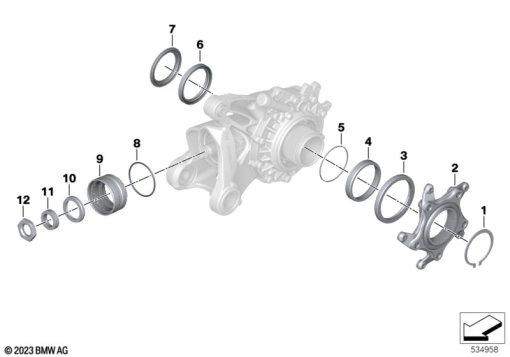

RIGHT-ANGLE GEARBOX, SINGLE PARTS
Diagram #33_3419 | 12 parts
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 905 076 | LOCK RING - 62X2 | - | |
| 2 | 33 11 7 722 831 | FLANGE | - | |
| 3 | 33 11 7 722 800 | SHAFT SEAL - 75X90X8,5 | - | |
| 4 | 33 11 7 722 797 | GUIDE RING | - | |
| 5 | 33 11 7 727 059 | BACKUP RING | - | |
| 6 | 33 11 7 722 890 | SHAFT SEAL - 59,8X75X8 | - | |
| 7 | 33 11 7 665 055 | COVER | - | |
| 8 | 07 11 9 904 691 | O-RING - 58X2,62 | - | |
| 9 | 33 11 7 665 034 | THREADED RING | - | |
| 10 | 33 11 7 722 888 | SHAFT SEAL - 35X47X7,5 | - | |
| 11 | 33 11 7 701 691 | COMPRESSION RING | - | |
| 12 | 33 12 1 450 497 | NUT - M24X1,5 | - |
