R12 nineT 22 (KR1) | Rear Axle & Suspension

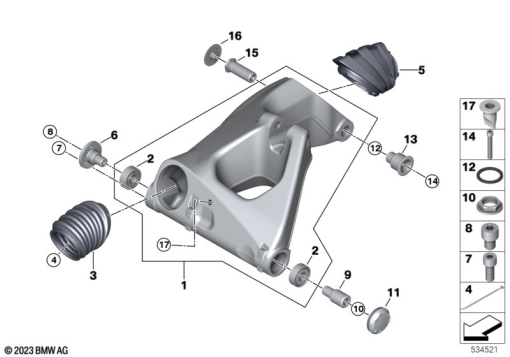

REAR WHEEL SWINGING ARM
Diagram #33_3401 | 17 parts | 3 available in shop
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 35 7 925 102 | REAR WHEEL SWINGING ARM, BLACK | 1 | |
| 2 | 33 17 2 311 729 | TAPERED ROLLER BEARING - 17X40X13,25 | 1 | |
| 3 | 33 35 8 829 974 | RUBBER BOOT | 1 | |
| 4 | 33 17 7 687 623 | CABLE TIE | 1 | |
| 5 | 33 35 8 829 973 | RUBBER BOOT | 1 | |
| 6 | 33 35 8 829 282 | BEARING JOURNAL, RIGHT | 1 | |
| 7 | 07 12 9 909 574 | SCREW - M6X15-8.8.MKL | 1 | |
| 8 | 07 12 9 907 087 | ISA SCREW - M6X8 | 1 | |
| 9 | 33 35 8 829 281 | PIVOT PIN, LEFT | 1 | |
| 10 | 33 17 2 335 111 | COLLAR NUT - M24X1,25-ZNNIV | 1 | |
| 11 | 46 51 7 694 153 | COVERING CAP | 1 | |
| 12 | 33 11 7 684 996 | GASKET RING - 38X30X2,5 | 1 | |
| 13 | 33 17 7 665 148 | PIVOT PIN | 1 | |
| 14 | 07 12 9 907 075 | FILLISTER-HEAD SCREW - M12X80-10.9-MK | 1 | |
| 15 | 33355A65AB4 | PIVOT PIN | 1 | |
| 16 | 33 17 7 674 694 | COVER | 1 | |
| 17 | 33 17 8 358 789 | VENTILATION VALVE | 1 |
