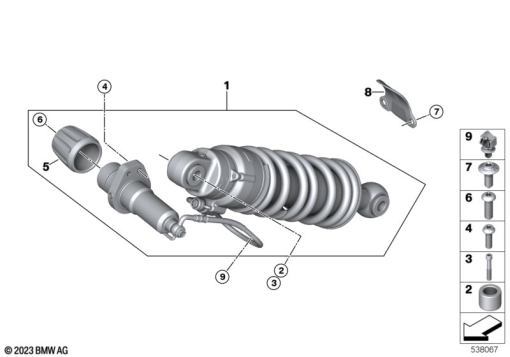

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 54 7 105 133 | SPRING STRUT, REAR | - | |
| 2 | 33 54 7 922 183 | BUSHING | - | |
| 3 | 07 14 7 109 290 | CHEESE HEAD SCREW - M14X1,5X85 MKL | - | |
| 4 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 5 | 31425A6D196 | ADJUSTMENT WHEEL SPRING STRUT ADJUSTMENT | - | |
| 6 | 07145A6DC59 | BOLT, ADJUSTMENT WHEEL | - | |
| 7 | 46 63 7 930 936 | BODY SCREW WITH SHOULDER - M5X14,5 MK | - | |
| 8 | 33 54 8 829 064 | SPRAY GUARD, SUSPENSION STRUT | - | |
| 9 | 17 12 8 482 154 | HOSE CLAMP - D=7MM | - |
