R12 nineT 22 (KR1) | Front Suspension

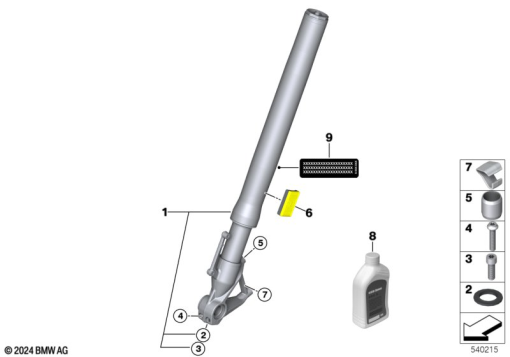

TELESCOPE-FORK
Diagram #31_2536 | 18 parts | 1 available in shop
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 105 374 | FORK LEG GOLD RIGHT | 1 | |
| 1 | 63 14 8 565 207 | REAR REFLECTOR YELLOW | 1 | |
| 1 | 31 42 7 105 375 | FORK LEG GOLD LEFT | 1 | |
| 1 | 71 22 8 875 731 | LABEL "EMISSION CONTROL INFORMATION" - USA/CAN | 1 | |
| 1 | 63 14 8 565 207 | REAR REFLECTOR YELLOW | 1 | |
| 1 | 31425A65471 | FORK LEG BLACK LEFT | 1 | |
| 1 | 71 22 8 875 731 | LABEL "EMISSION CONTROL INFORMATION" - USA/CAN | 1 | |
| 1 | 63 14 8 565 207 | REAR REFLECTOR YELLOW | 1 | |
| 1 | 31425A65472 | FORK LEG BLACK RIGHT | 1 | |
| 1 | 63 14 8 565 207 | REAR REFLECTOR YELLOW | 1 | |
| 2 | 31 42 9 444 964 | GASKET RING | 1 | |
| 3 | 07 12 9 906 017 | ISA SCREW - M8X25 8.8 MK | 1 | |
| 4 | 07 12 9 908 033 | FILLISTER-HEAD SCREW - M6X30 - 10.9 | 1 | |
| 5 | 07 14 1 642 512 | DOWEL - 12,5X10,5X13,5 | 1 | |
| 6 | 63 14 8 565 207 | REAR REFLECTOR YELLOW | 1 | |
| 7 | 34 52 9 829 829 | CABLE CLAMP | 1 | |
| 8 | 83 19 2 460 735 | TELESCOPIC FORKS OIL TYPE 2 - 1000ML | 1 | |
| 9 | 71 22 8 875 731 | LABEL "EMISSION CONTROL INFORMATION" - USA/CAN | 1 |
