Parts List (10)

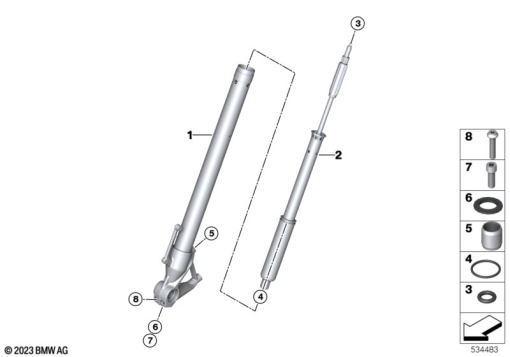

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31425A6D167 | SLIDER TUBE LEFT | - | |
31425A6D168 | SLIDER TUBE RIGHTAlternative for position 1 | - | ||
| 2 | 31425A6D170 | DAMPER UNIT LEFT | - | |
31425A6D178 | DAMPER UNIT RIGHTAlternative for position 2 | - | ||
| 3 | 07 11 9 909 558 | O-RING - 2,9X1,78 | - | |
| 4 | 31 42 8 406 079 | O-RING - 34X4 | - | |
| 5 | 07 14 1 642 512 | DOWEL - 12,5X10,5X13,5 | - | |
| 6 | 31 42 9 444 964 | GASKET RING | - | |
| 7 | 07 12 9 906 017 | ISA SCREW - M8X25 8.8 MK | - | |
| 8 | 07 12 9 908 033 | FILLISTER-HEAD SCREW - M6X30 - 10.9 | - |
