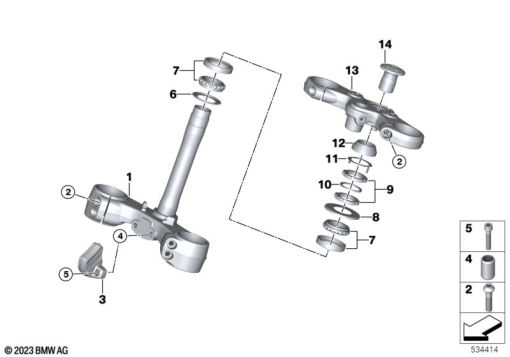

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 107 769 | FORK BRIDGE LOWER | - | |
| 2 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | - | |
| 3 | 31 42 7 107 770 | HOLDER HEADLIGHT LOWER | - | |
77 31 7 107 771 | HOLDER HEADLIGHT LOWERAlternative for position 3 | - | ||
| 4 | 11 12 1 726 242 | DOWEL - D=8,5X9MM | - | |
| 5 | 07 12 9 905 386 | ISA SCREW - M6X30-8.8-ZNNIV | - | |
| 6 | 31 42 8 548 984 | WASHER-GASKET | - | |
| 7 | 31 42 8 548 780 | BEARING | - | |
| 8 | 31 42 8 554 057 | WASHER-GASKET | - | |
| 9 | 31 42 8 549 401 | GROOVE NUT | - | |
| 10 | 31 42 8 548 983 | RUBBER WASHER | - | |
| 11 | 31 42 8 549 411 | SECURING PLATE | - | |
| 12 | 31 42 9 898 304 | CENTERING RING | - | |
| 13 | 31 42 7 107 773 | FORK BRIDGE UPPER | - | |
| 14 | 31 42 8 549 243 | SCREW - M28X1,5 | - |
