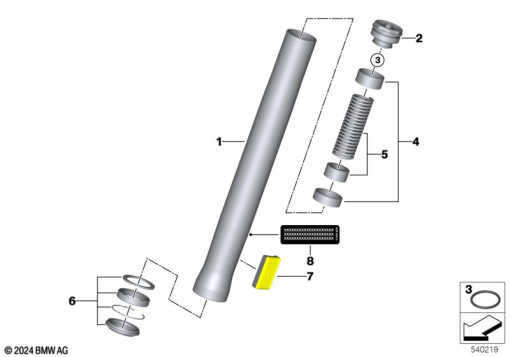

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31425A6D141 | FORK TUBE, GOLD | - | |
71 22 8 875 731 | LABEL "EMISSION CONTROL INFORMATION" - USA/CANAlternative for position 1 | - | ||
| 2 | 63 14 8 565 207 | REAR REFLECTOR YELLOW | - | |
| - | 31425A6D180 | FIXED OUTER FORK TUBE, BLACK | - | |
| - | 71 22 8 875 731 | LABEL "EMISSION CONTROL INFORMATION" - USA/CAN | - | |
| 2 | 63 14 8 565 207 | REAR REFLECTOR YELLOW | - | |
31425A6D352 | 350.97Alternative for position 2 | - | ||
| 3 | 07 11 9 909 451 | O-RING - 44,04X3,53 | - | |
| 4 | 31 42 9 898 403 | SET: SET OF PLAIN BEARINGS | - | |
| 5 | 31425A6D182 | SET: SET SPRINGS | - | |
| 6 | 31425A95630 | SET: SET OF GASKETS | - | |
| 7 | 63 14 8 565 207 | REAR REFLECTOR YELLOW | - | |
| 8 | 71 22 8 875 731 | LABEL "EMISSION CONTROL INFORMATION" - USA/CAN | - |
