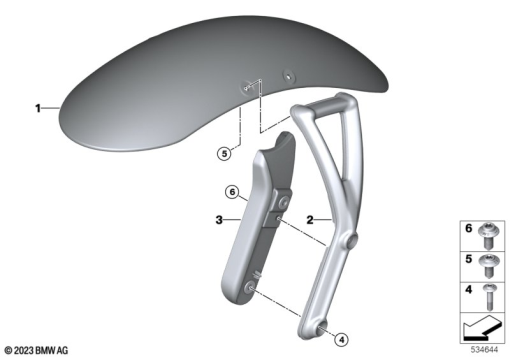

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46615B36930 | FRONT WHEEL FENDER - ROHTEIL / BLANK | - | |
| 2 | 46 61 1 728 865 | HOLDER FRONT WHEEL COVER LEFT | - | |
46 61 1 728 866 | HOLDER FRONT WHEEL COVER RIGHTAlternative for position 2 | - | ||
| 3 | 46 61 1 728 863 | TRIM, FRONT WHEEL COVER, LEFT | - | |
46 61 1 728 862 | TRIM, FRONT WHEEL COVER, RIGHTAlternative for position 3 | - | ||
| 4 | 46 63 8 534 944 | BODY SCREW WITHOUT SHOULDER - M5X25 MK | - | |
| 5 | 46 63 8 568 779 | BODY SCREW WITHOUT SHOULDER - M5X12 MK | - | |
| 6 | 11 61 1 540 853 | SCREW - M4X10 MK | - |
