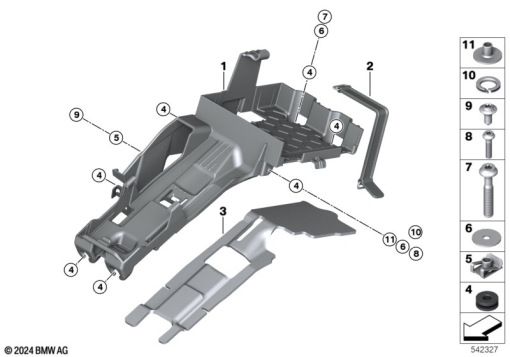

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 739 339 | BATTERY TRAY | - | |
46635A66003 | THERMAL PROTECTION, BATTERY TRAYAlternative for position 1 | - | ||
| 2 | 61 21 2 346 549 | TENSION STRAP | - | |
| 3 | 46635A66003 | THERMAL PROTECTION, BATTERY TRAY | - | |
| 4 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 5 | 07 14 9 118 815 | C-CLIP NUT - M6 | - | |
| 6 | 07 14 6 977 329 | WASHER - 6,4X25X1,5 | - | |
| 7 | 07 12 9 907 399 | FILLISTER-HEAD SCREW - M6X35-8.8-ZNNIV | - | |
| 8 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | - | |
| 9 | 46 63 8 521 656 | BODY SCREW WITH SHOULDER - M6X14,5-A2-70 | - | |
| 10 | 46 63 1 451 278 | INSERT | - | |
| 11 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - |
