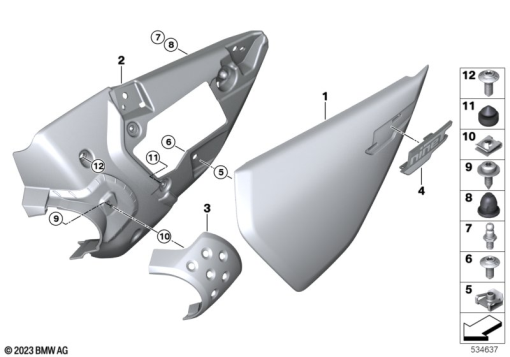

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46635B36937 | ABDECKUNG AIRBOX LEFT - ROHTEIL / BLANK | - | |
46635B36938 | ABDECKUNG AIRBOX RIGHT - ROHTEIL / BLANKAlternative for position 1 | - | ||
| 2 | 46 63 1 757 207 | BASE SUPPORT, LEFT | - | |
46 63 1 757 208 | BASE SUPPORT, RIGHTAlternative for position 2 | - | ||
| 3 | 46 63 1 757 437 | COVER, INTAKE MANIFOLD, LEFT | - | |
46 63 1 757 438 | COVER, INTAKE MANIFOLD, RIGHTAlternative for position 3 | - | ||
| 4 | 51145A65D63 | INSCRIPTION, SIDE COVER, LEFT | - | |
51145A65D64 | SIDE COVER INSCRIPTION, RIGHTAlternative for position 4 | - | ||
51 14 7 109 047 | PLAQUE, OPTION 719, LEFT - CLASSICAlternative for position 4 | - | ||
51 14 7 109 048 | PLAQUE, OPTION 719, RIGHT - CLASSICAlternative for position 4 | - | ||
| 5 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 6 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | - | |
| 7 | 13 71 7 590 239 | BALL PIN | - | |
| 8 | 46 63 8 537 920 | SNAP-LOCK COUPLING - 7MM | - | |
| 9 | 07 11 9 905 859 | SCREW - 4,2X13 | - | |
| 10 | 07 14 6 976 688 | CLIP FOR SHEET METAL NUT - ST-4,2 | - | |
| 11 | 51 17 8 153 364 | STOP BUFFER | - | |
| 12 | 46 63 7 930 936 | BODY SCREW WITH SHOULDER - M5X14,5 MK | - |
