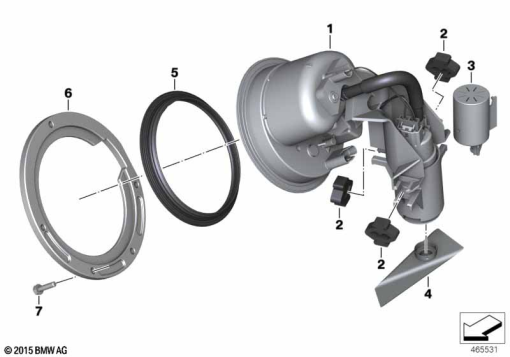

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 14 8 564 596 | FUEL PUMP ASSY (to 01/19) | 1 | |
| – | 13 53 7 674 765 | QUICK-RELEASE COUPLING - 90° (to 01/19) | 1 | |
| 1 | 16 14 8 393 850 | FUEL PUMP ASSY (from 01/19) | 1 | |
| – | 13 53 8 558 301 | QUICK-RELEASE COUPLING - 90° (from 01/19) | 1 | |
| 2 | 16 14 1 180 474 | RUBBER MOUNTING | 1 | |
| 3 | 16 14 8 564 601 | WARNING SWITCH (to 01/19) | 1 | |
| 3 | 16 14 8 393 851 | WARNING SWITCH (from 01/19) | 1 | |
| 4 | 16 14 8 551 342 | STRAINER (to 01/19) | 1 | |
| 4 | 16 14 8 393 975 | STRAINER (from 01/19) | 1 | |
| 5 | 16 11 7 700 995 | GASKET | 1 | |
| 6 | 16 11 8 544 123 | PRESSURE PLATE | 1 | |
| 7 | 07 11 9 903 841 | HEX BOLT - M5X20-U1-8.8 | 1 |
