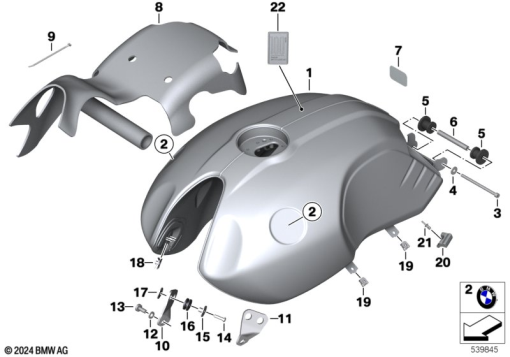

Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 8 560 227 | FUEL TANK | - | |
16 11 8 565 077 | FUEL TANK WITHOUT VISIBLE SEAMAlternative for position 1 | - | ||
| 4 | 07 14 9 118 815 | C-CLIP NUT - M6 | - | |
| - | 16 11 8 565 075 | FUEL TANK WITH VISIBLE SEAM | - | |
| 4 | 07 14 9 118 815 | C-CLIP NUT - M6 | - | |
| - | 16 11 8 414 940 | FUEL TANK - BLACK-AURUM2 | - | |
| 4 | 07 11 9 936 426 | FLAT WASHER | - | |
| - | 16 11 8 382 849 | FUEL TANK - LIGHT-WHITE | - | |
| - | 51 14 7 721 223 | BADGE - D=70 | - | |
| - | 07 11 9 906 193 | SCREW - M6X100 | - | |
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
| 5 | 16 11 7 710 877 | RUBBER INSULATOR, TANK BRACKET | - | |
| 6 | 16 11 8 546 414 | SPACER BUSH | - | |
| 7 | 46 54 2 315 901 | FOIL | - | |
| 8 | 16 11 8 543 475 | SET OF HEAT SHIELD SHEETS | - | |
16 11 8 543 475 | SET OF HEAT SHIELD SHEETSAlternative for position 8 | - | ||
16 11 8 543 475 | SET OF HEAT SHIELD SHEETSAlternative for position 8 | - | ||
16 11 8 558 098 | SET OF HEAT SHIELD SHEETSAlternative for position 8 | - | ||
| 9 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 10 | 16 11 8 545 892 | RETAINING BRACKET, RIGHT | - | |
| 11 | 16 11 8 544 113 | HOLDING STRAP LEFT | - | |
| 12 | 07 11 9 905 231 | WASHER - 8-200 HV-A4 | - | |
| 13 | 07 11 9 906 880 | COUNTERSUNK SCREW - M8X18-A2-70 | - | |
| 14 | 32 72 7 728 352 | FILLISTER HEAD SCREW - M6X22 | - | |
| 15 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 16 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 17 | 07 14 6 977 329 | WASHER - 6,4X25X1,5 | - | |
| 18 | 07 14 9 118 815 | C-CLIP NUT - M6 | - | |
| 19 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 20 | 16 11 8 552 076 | RUBBER ELEMENT | - | |
| 21 | 51 16 1 881 149 | EXPANDING RIVET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
