R nineT Racer (K32) | Fuel Supply
ACTIVATED CHARCOAL FILTER/MOUNTING PARTS

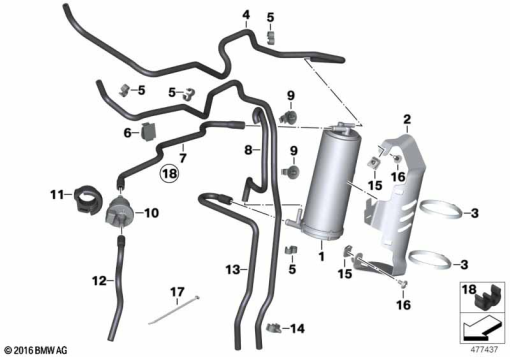

Diagram #16_1098 | 18 parts
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 13 7 727 387 | ACTIVATED CHARCOAL FILTER | - | |
| 2 | 16 13 8 558 118 | HOLDER | - | |
| 3 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - | |
| 4 | 16 13 8 558 121 | FUEL TANK BREATHER LINE | - | |
| 5 | 62 12 2 306 589 | CABLE CLAMP | - | |
| 6 | 61 13 7 849 481 | CLIP - M PDC | - | |
| 7 | 16 13 8 558 123 | HOSE | - | |
| 8 | 16 13 8 558 128 | HOSE | - | |
| 9 | 17 12 7 609 160 | PIPE CLIP | - | |
| 10 | 13 90 1 465 030 | FUEL TANK BREATHER VALVE | - | |
| 11 | 13 90 1 734 443 | BRACKET VENTILATION VALVE | - | |
| 12 | 16 13 8 558 124 | HOSE | - | |
| 13 | 16 13 8 558 125 | HOSE | - | |
| 14 | 16 13 8 549 362 | HOLDER | - | |
| 15 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 16 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | - | |
| 17 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 18 | 22 11 6 758 925 | CABLE CLAMP | - |
