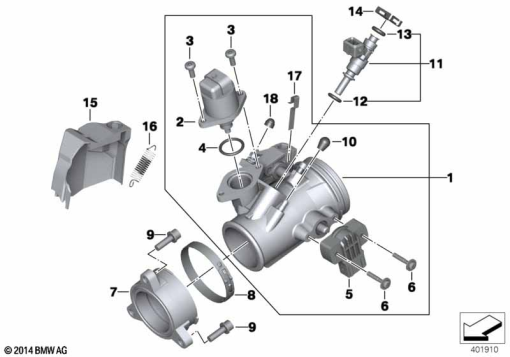

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 54 7 705 239 | THROTTLE BODY, BLACK, LEFT | - | |
13 54 7 705 240 | THROTTLE BODY, BLACK, RIGHTAlternative for position 1 | - | ||
| 2 | 13 54 7 714 408 | IDLE CONTROL DEVICE | - | |
| 3 | 13 54 7 682 039 | ISA SCREW - M5X12 | - | |
| 4 | 13 54 7 689 063 | O-RING - 18,72 X 2,62 | - | |
| 5 | 13 54 8 406 249 | THROTTLE VALVE SWITCH | - | |
| 6 | 13 54 7 689 880 | SCREW - M4X25 | - | |
| 7 | 11 61 7 710 875 | INTAKE MANIFOLD - D=44,8 | - | |
| 8 | 11 61 7 723 636 | MUFFLER CLAMP - D=60,5MM | - | |
| 9 | 07 12 9 903 979 | TORX SCREW - M6X20-U1-8.8 | - | |
| 10 | 13 54 7 694 924 | PROTECTION CAP | - | |
| 11 | 13 61 7 672 335 | INJECTION VALVE - EV14 | - | |
| 12 | 13 64 7 675 557 | O-RING - 8,3X3,05 | - | |
| 13 | 13 64 1 437 476 | O-RING - 7,52X3,51 | - | |
| 14 | 13 53 7 688 795 | SPRING CLIP | - | |
| 15 | 13 54 7 688 633 | COVERING CAP LEFT | - | |
13 54 7 688 634 | COVERING CAP RIGHTAlternative for position 15 | - | ||
| 16 | 13 54 7 678 224 | TENSION SPRING | - | |
| 17 | 13 54 7 678 227 | SPRING CLIP | - | |
| 18 | 13 54 7 688 665 | COVER BOLT | - |
