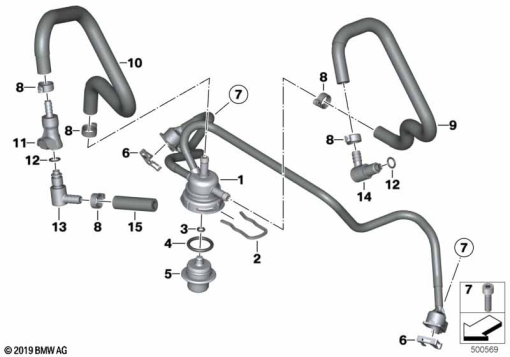

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 53 8 543 953 | FUEL DISTRIBUTOR | - | |
| 2 | 13 53 7 702 892 | CLAMPING SPRING | - | |
| 3 | 13 53 1 465 193 | O-RING - 5X1,5 | - | |
| 4 | 13 53 1 341 067 | O-RING - 20X2,5 | - | |
| 5 | 13 53 7 705 871 | FUEL PRESSURE REGULATOR - 4 BAR | - | |
| 6 | 13 53 7 688 795 | SPRING CLIP | - | |
| 7 | 07 12 9 903 324 | ISA SCREW - M5X16-A2-70 | - | |
| 8 | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 | - | |
| 9 | 13 53 8 543 954 | INLET FUEL HOSE | - | |
| 10 | 13 53 8 543 955 | RETOUR FUEL HOSE | - | |
| 11 | 13 31 7 659 120 | CONNECTING SLEEVE | - | |
| 12 | 13 53 7 700 797 | O-RING | - | |
| 13 | 13 53 7 674 765 | QUICK-RELEASE COUPLING - 90° | - | |
| 14 | 13 53 8 558 301 | QUICK-RELEASE COUPLING - 90° (from 01/19) | - | |
| - | 16 14 8 393 850 | FUEL PUMP ASSY (from 01/19) | - | |
| 14 | 13 53 7 674 765 | QUICK-RELEASE COUPLING - 90° (to 01/19) | - | |
| - | 16 14 8 564 596 | FUEL PUMP ASSY (to 01/19) | - | |
| 15 | 13 53 7 563 456 | FUEL HOSE - 8X13MMX1000 (meter) | - |
