R nineT Racer (K32) | Fuel Preparation
INTAKE SILENCER / FILTER CARTRIDGE INTAKE SILENCER / FILTER CART

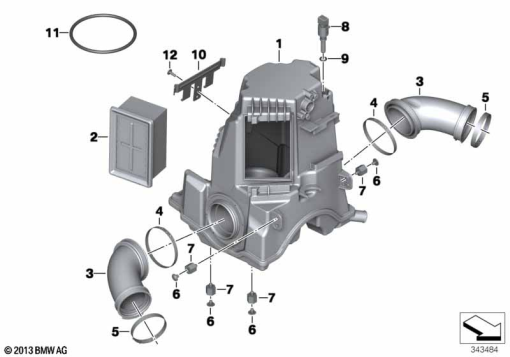

Diagram #13_1118 | 10 parts
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 7 720 354 | INTAKE MUFFLER | 1 | |
| 2 | 13 71 7 706 414 | AIR FILTER ELEMENT | 1 | |
| 3 | 13 71 7 712 621 | SUCTION PIPE LEFT | 1 | |
| 3 | 13 71 7 712 622 | SUCTION PIPE RIGHT | 1 | |
| 4 | 13 71 7 680 687 | MUFFLER CLAMP - D=79.5 | 1 | |
| 5 | 13 71 7 728 769 | MUFFLER CLAMP - Ø 68.0 | 1 | |
| 6 | 41 35 7 042 973 | TORX-BOLT WITH WASHER - M6X8 | 1 | |
| 7 | 13 71 7 672 542 | SWINGING METAL BUFFER | 1 | |
| 8 | 13 62 9 899 008 | INTAKE AIR TEMPERATURE SENSOR | 1 | |
| 9 | 13 62 1 743 299 | O-RING - 8X3 | 1 |
