R nineT Racer (K32) | Fuel Preparation

BRACKET, CONTROL UNIT

Diagram #13_1705 | 4 parts

100%

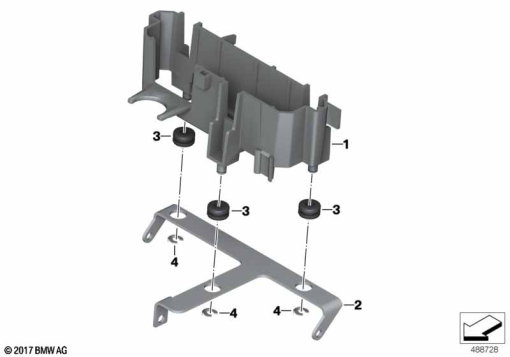

R nineT Racer (K32) BRACKET, CONTROL UNIT exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
61 35 8 544 881
HOLDER1
2
61 35 8 544 879
BRACKET, CONTROL UNIT1
3
46 63 1 233 200
RUBBER GROMMET1
4
07 12 9 909 733
SECURING CLIP - ZNNIV SW1
