R nineT Racer (K32) | Frame, Fairing, Cases

FRONT PANEL CARRIER

Diagram #46_1966 | 3 parts

100%

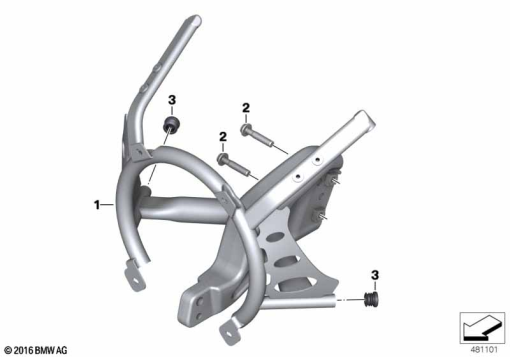

R nineT Racer (K32) FRONT PANEL CARRIER exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 63 8 558 745
FRONT PANEL CARRIER, CENTER1
2
07 12 9 907 379
FILLISTER-HEAD SCREW - M8X40-8.8-ZNNIV1
3
46 63 8 356 746
PLUG1
