R nineT Racer (K32) | Frame, Fairing, Cases

WINDSHIELD / MOUNT

Diagram #46_1965 | 4 parts

100%

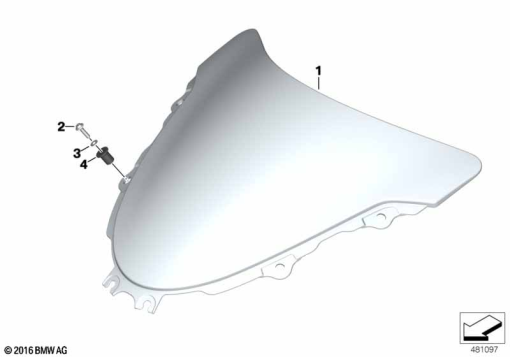

R nineT Racer (K32) WINDSHIELD / MOUNT exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 63 8 558 746
WINDSHIELD1
2
46 63 8 534 941
BODY SCREW WITHOUT SHOULDER - M4X16-A2-701
3
46 63 8 554 372
WASHER - M41
4
46 63 8 534 942
FLAT NUT - M41
