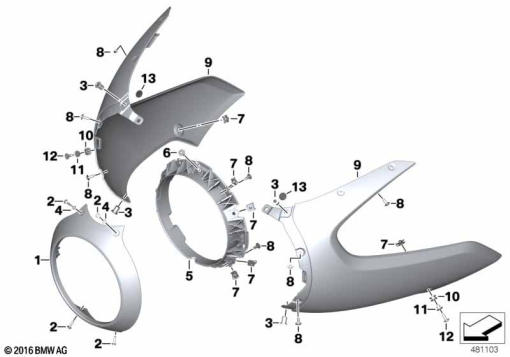

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 560 239 | HEADLIGHT COVER - ROHTEIL / BLANK | - | |
| 2 | 46 63 8 534 941 | BODY SCREW WITHOUT SHOULDER - M4X16-A2-70 | - | |
| 3 | 46 63 8 534 942 | FLAT NUT - M4 | - | |
| 4 | 46 63 8 554 372 | WASHER - M4 | - | |
| 5 | 46 63 8 558 748 | CENTERING RING | - | |
| 6 | 07 12 9 907 471 | SCREW - 5X16 | - | |
| 7 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 8 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | - | |
| 9 | 46 63 8 560 242 | LATERAL TRIM PANEL, LEFT - ROHTEIL / BLANK | - | |
46 63 8 560 246 | LATERAL TRIM PANEL, RIGHT - ROHTEIL / BLANKAlternative for position 9 | - | ||
| 10 | 46 63 8 555 101 | RUBBER GROMMET | - | |
| 11 | 46 63 7 724 481 | FLANGE SLEEVE, STEEL - L=7MM (from 08/18) | - | |
46 63 7 724 481 | FLANGE SLEEVE, STEEL - L=7MM (to 08/18)Alternative for position 11 | - | ||
| 12 | 46 63 8 527 780 | BODY SCREW WITHOUT SHOULDER - M5X20-A2-70 (from 08/18) | - | |
| - | 46 63 8 414 761 | HOLDER (from 08/18) | - | |
| 12 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 (to 08/18) | - | |
| - | 46 63 8 558 749 | HOLDER (to 08/18) | - | |
| 13 | 61 35 7 693 144 | GROMMET | - |
