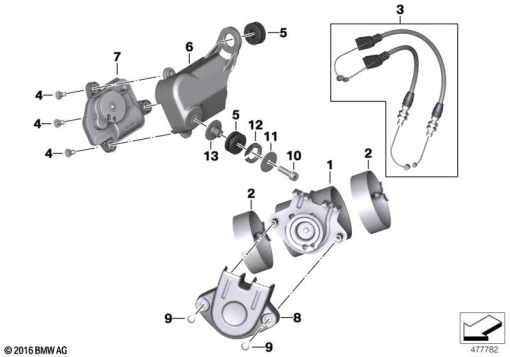

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 51 8 546 552 | EXHAUST FLAP - D=57 | - | |
| 2 | 18 12 7 716 478 | CLAMP - D=66MM | - | |
| 3 | 18 30 8 357 363 | SET: KIT, BOWDEN CABLE, EXHAUST FLAP | - | |
| 4 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | - | |
| 5 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 6 | 18 30 8 558 132 | SUPPORT ACTUATOR EXHAUST FLAP | - | |
| 7 | 18 51 9 443 059 | SERVO UNIT, EXHAUST FLAP (from 08/16) | - | |
| 8 | 18 12 7 716 479 | SPRAY GUARD, EXHAUST FLAP | - | |
| 9 | 51 11 7 707 528 | FILLISTER HEAD SCREW WITH COLLAR - M5X10-A2-80-MK | - | |
| 10 | 11 11 7 653 180 | FILLISTER HEAD SCREW - M6X20-A2-80 | - | |
| 11 | 07 14 9 151 606 | WASHER - 6,4-25-1,5MM | - | |
| 12 | 46 63 1 451 278 | INSERT | - | |
| 13 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - |
