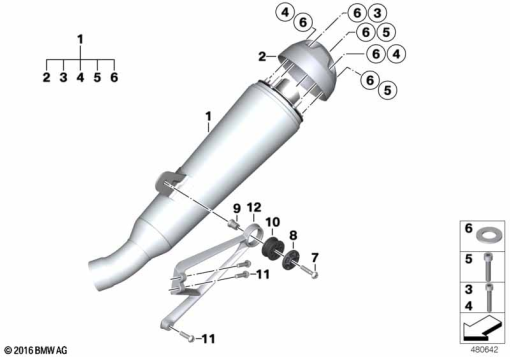

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 51 8 561 330 | REAR MUFFLER | 1 | |
| 2 | 18 51 8 564 488 | CAP FOR REAR MUFFLER, REAR | 1 | |
| 3 | 07 12 9 909 396 | INNER HEX BOLT - M5X40 | 1 | |
| 4 | 07 12 9 905 915 | ISA SCREW - M5X35 | 1 | |
| 5 | 07 12 9 900 395 | TORX BOLT - M5X25-A2-70 | 1 | |
| 6 | 18 51 8 568 472 | WASHER - M5X8,9X0,7 | 1 | |
| 7 | 07 12 9 907 379 | FILLISTER-HEAD SCREW - M8X40-8.8-ZNNIV | 1 | |
| 8 | 18 51 7 708 082 | FORMED DISC | 1 | |
| 9 | 18 51 7 708 081 | SPACER SLEEVE | 1 | |
| 10 | 18 51 7 728 002 | RUBBER INSULATION ELEMENT | 1 | |
| 11 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | 1 | |
| 12 | 18 21 8 564 071 | BRACKET, END MUFFLER | 1 |
