R nineT Racer (K32) | Exhaust System

EXHAUST SYSTEM PARTS WITH MOUNTS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #18_0529 | 9 parts

100%

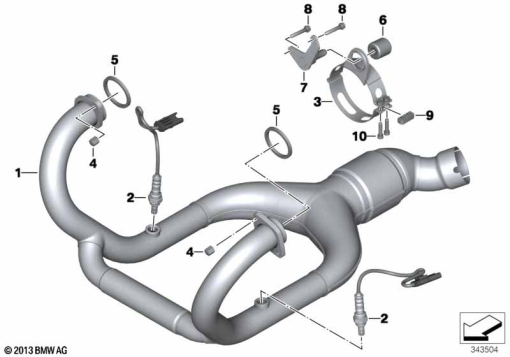

R nineT Racer (K32) EXHAUST SYSTEM PARTS WITH MOUNTS exploded view parts diagram

Parts List (9)

#	Part Number	Description	Qty
1	18 51 8 561 881	EXHAUST MANIFOLD, POLISHED	-
	18 51 8 561 883	EXHAUST MANIFOLD, CHROME-PLATEDAlternative for position 1	-
2	11 78 7 718 140	OXYGEN SENSOR	-
3	18 51 8 559 876	BRACKET, EXHAUST MANIFOLD	-
4	18 21 7 653 602	18.45	-
5	18 11 7 673 763	EXHAUST SEAL	-
6	18 21 1 342 283	RUBBER MOUNTING	-
9	18 11 7 682 036	SPACER	-
10	07 12 9 900 913	ISA SCREW - M6X25-A2-70	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
