R nineT Racer (K32) | Brakes

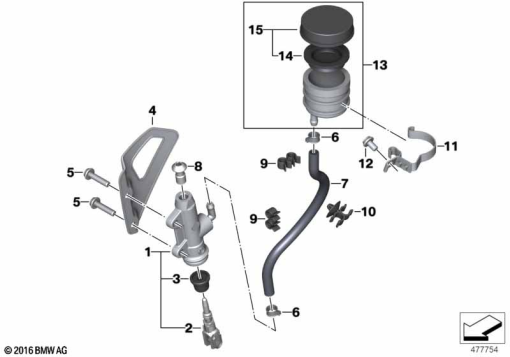

REAR BRAKE MASTER CYLINDER W CONTAINER
Diagram #34_2434 | 15 parts | 1 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 8 529 423 | REAR BRAKE MASTER CYLINDER | 1 | |
| 2 | 34 31 7 710 504 | 64.59 | 1 | |
| 3 | 34 31 7 692 791 | RUBBER BOOT | 1 | |
| 4 | 34 31 8 537 629 | COVER | 1 | |
| 5 | 07 12 9 909 321 | FILLISTER-HEAD SCREW - M6X25-8.8-MK | 1 | |
| 6 | 17 11 1 460 922 | HOSE CLAMP - D=12,3MM | 1 | |
| 7 | 34 32 2 314 742 | HOSE, BULK - 6X10 (meter) | 1 | |
| 8 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | 1 | |
| 9 | 13 90 1 720 201 | HOSE CLAMP | 1 | |
| 10 | 17 12 7 609 160 | PIPE CLIP | 1 | |
| 11 | 34 31 8 544 714 | BRACKET, EXPANSION TANK, REAR | 1 | |
| 12 | 34 21 9 908 485 | FILLISTER-HEAD SCREW - M6X10-8.8-MKL- | 1 | |
| 13 | 34 31 2 314 082 | EXPANSION TANK | 1 | |
| 14 | 34 31 2 314 092 | RUBBER COVER | 1 | |
| 15 | 34 31 2 314 091 | COVER | 1 |
