R nineT Racer (K32) | Brakes

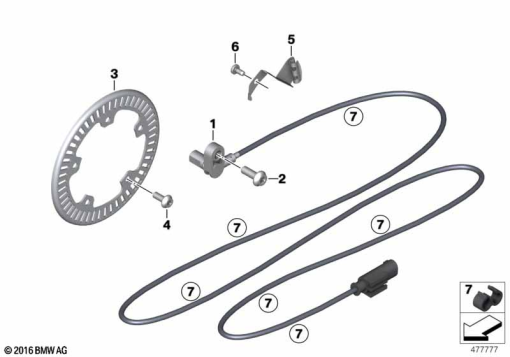

WHEELSPEED SENSOR, FRONT
Diagram #34_2435 | 9 parts | 2 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34525A781C5 | NEW VERSION wheelspeed sensor | 1 | |
| 1 | 34 52 9 443 105 | WHEELSPEED SENSOR (to 05/23) | 1 | |
| 1 | 34525A781C5 | WHEEL SPEED SENSOR | 1 | |
| 2 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 3 | 34 52 9 480 186 | SENSOR RING - Z=48 | 1 | |
| 4 | 07 12 9 907 433 | TORX BOLT - M5X10-8.8-ZNNIV | 1 | |
| 5 | 34 52 8 559 497 | HOLDER | 1 | |
| 6 | 07 14 9 157 026 | FILLISTER HEAD SCREW | 1 | |
| 7 | 61 13 8 366 977 | CABLE CLAMP - D=8/4,5MM | 1 |
