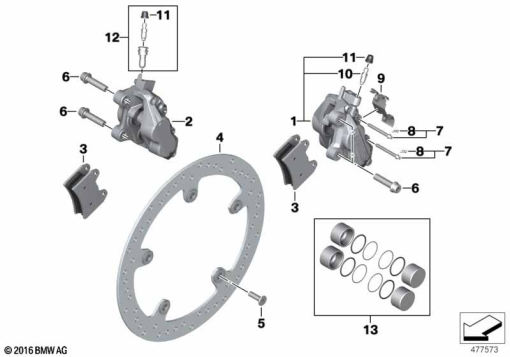

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 7 716 717 | CALIPER WITH OUT BRAKE PADS LEFT | - | |
| 2 | 34 11 8 563 486 | CALIPER WITH OUT BRAKE PADS RIGHT | - | |
| 3 | 34 11 7 696 593 | SET OF BRAKE PADS FRONT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 3 | - | ||
| 4 | 34 11 7 696 595 | 0.04 | - | |
34 11 8 526 575 | BRAKE ROTOR WITH RIVET - D=320-4,5MMAlternative for position 4 | - | ||
| 10 | 34 11 7 700 989 | COUNTERSUNK SCREW - M8X27-10.9 MK | - | |
| - | 34 11 7 700 989 | COUNTERSUNK SCREW - M8X27-10.9 MK | - | |
| - | 46 51 7 726 490 | TRAPEZOIDAL SCREW - M10X1.25X40 | - | |
| - | 34 11 7 696 595 | 0.04 | - | |
| - | 34 11 7 696 597 | CLIP | - | |
| - | 34 11 7 696 596 | SPRING, BRAKE CALIPER | - | |
| 10 | 34 11 7 696 594 | VENT SCREW | - | |
| 11 | 34 21 2 314 001 | 34 21 2 314 001 | 2 | |
| 12 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | - | |
| 13 | 34 11 8 353 743 | SET: SET PISTONS WITH GASKET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
