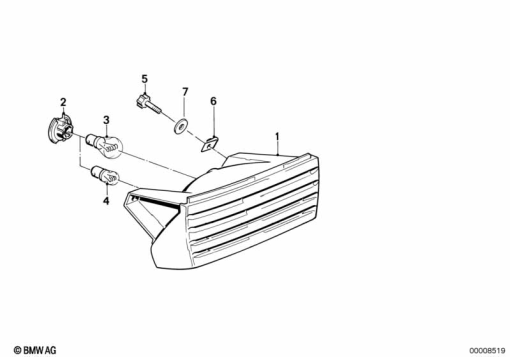

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 21 1 459 046 | REAR LIGHT | - | |
| 2 | 63 23 1 459 107 | BULB SOCKET - ULO | - | |
| 3 | 63 21 7 160 789 | BULB - P21W/12V/21W | - | |
63 21 7 160 790 | LONGLIFE BULBAlternative for position 3 | - | ||
63 21 6 926 920 | LONGLIFE BULB - P21W/12V/21WAlternative for position 3 | - | ||
63 21 7 160 790 | LONGLIFE BULBAlternative for position 3 | - | ||
| 4 | 07 11 9 905 337 | BULB - 12V 10W | - | |
| 5 | 71 60 1 231 263 | KNURLED BOLT | - | |
| 6 | 51 12 7 070 202 | C-CLIP NUT - M6-ZNS3 | - | |
| 7 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 7 | - |
