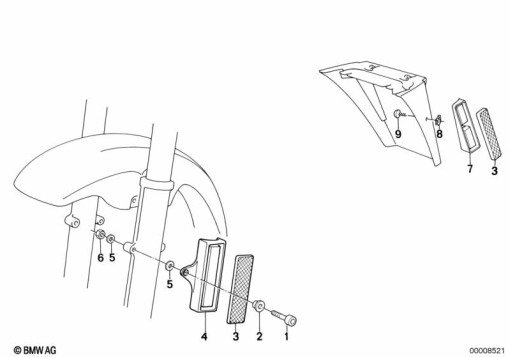

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 2 322 495 | FILLISTER-HEAD SCREW - M6X45-8.8 ZNS | - | |
| 2 | 63 14 1 459 169 | BUSH | - | |
| 3 | 63 14 1 459 035 | REFLECTOR, YELLOW | - | |
63 14 1 459 401 | REFLECTOR, REDAlternative for position 3 | - | ||
| 4 | 63 14 1 459 168 | HOLDER | - | |
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 6 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 6 | - | ||
| 7 | 63 14 2 300 073 | BRACKET LEFT | - | |
| - | 07 12 9 905 817 | HEX NUT | - | |
| 7 | 63 14 2 300 074 | BRACKET RIGHT | - | |
| 8 | 07 14 6 955 207 | C-CLIP NUT | - | |
| 9 | 07 14 7 137 416 | FILLISTER HEAD SELF-TAPPING SCREW - ST4,8X16 | - |
