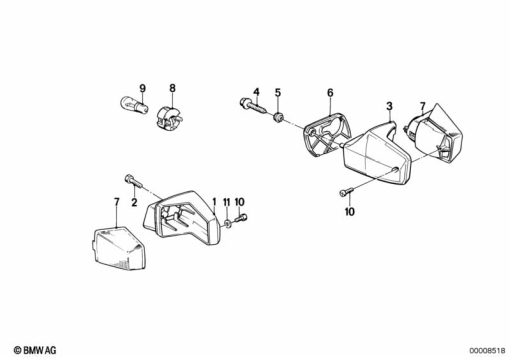

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 13 1 459 325 | BRACKET FRONT LEFT | - | |
63 13 1 459 326 | BRACKET FRONT RIGHTAlternative for position 1 | - | ||
| 2 | 46 63 1 235 512 | SCREW | - | |
| 3 | 63 23 1 459 327 | BRACKET REAR LEFT | - | |
63 23 1 459 328 | BRACKET REAR RIGHTAlternative for position 3 | - | ||
| 4 | 63 23 1 453 216 | SCREW - 30MM | - | |
| 5 | 52 53 1 453 213 | BUMP STOP | - | |
| 6 | 63 23 1 453 437 | LEFT PAD | - | |
63 23 1 453 438 | PAD RIGHTAlternative for position 6 | - | ||
| 7 | 63 23 1 459 050 | TURN INDICATOR - ULO | - | |
| 8 | 63 23 1 459 107 | BULB SOCKET - ULO | - | |
63 23 1 459 413 | BULB SOCKET - LIGHTAAlternative for position 8 | - | ||
| 9 | 63 21 7 160 789 | BULB - P21W/12V/21W | - | |
63 21 6 926 920 | LONGLIFE BULB - P21W/12V/21WAlternative for position 9 | - | ||
63 21 7 160 790 | LONGLIFE BULBAlternative for position 9 | - | ||
63 21 7 160 790 | LONGLIFE BULBAlternative for position 9 | - | ||
| 10 | 63 23 1 459 108 | SCREW - M4X12 | - | |
63 23 1 459 722 | SCREW - 32MMAlternative for position 10 | - | ||
| 11 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 11 | - |
