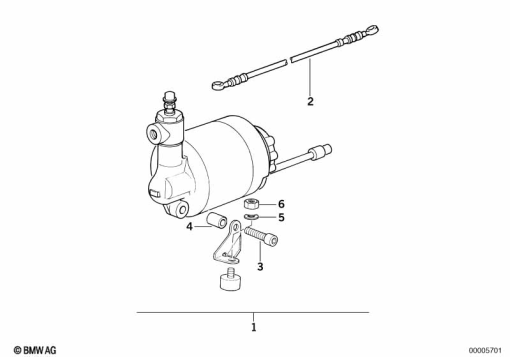

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 2 315 881 | SET: MODIFICATION KIT F BRAKE PARTS | - | |
| 2 | 34 32 2 315 797 | BRAKE HOSE | - | |
| 3 | 07 11 9 901 027 | FILLISTER-HEAD SCREW - M8X35 ZNS | - | |
07 11 9 902 984 | FILLISTER-HEAD SCREW - M8X40-8.8-ZNS3Alternative for position 3 | - | ||
07 11 9 919 648 | SOCKET HEAD CAP SCREWAlternative for position 3 | - | ||
| 4 | 46 51 2 315 795 | BUSH - 13MM,D=15MM | - | |
46 51 2 315 796 | BUSH - 8MM,D=15MMAlternative for position 4 | - | ||
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 6 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 6 | - | ||
07 12 9 905 817 | HEX NUTAlternative for position 6 | - |
