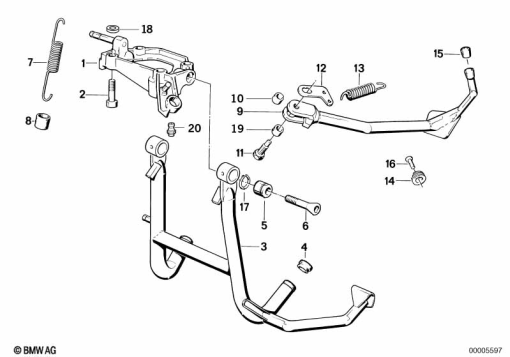

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 2 311 150 | SUPPORTING BRACKET | - | |
46 53 2 310 471 | BUSHINGAlternative for position 1 | - | ||
46 53 2 310 473 | BUSHING - 16X10,2X12,2Alternative for position 1 | - | ||
46 53 2 312 278 | HEX BOLT - M10X50-8.8Alternative for position 1 | - | ||
| 2 | 46 52 1 450 717 | FILLISTER-HEAD SCREW - M10X40 | - | |
| 3 | 46 52 2 310 475 | CENTER STAND | - | |
| 4 | 46 52 1 236 522 | 28.66 | - | |
| 5 | 46 52 1 454 038 | SLEEVE - 24MM | - | |
| 6 | 46 52 1 454 158 | COUNTERSUNK HEAD SCREW - M10X50-8.8 | - | |
| 7 | 46 52 1 450 075 | TENSION SPRING | - | |
| 8 | 46 52 1 237 786 | RUBBER GROMMET | - | |
| 9 | 46 53 1 451 973 | SIDE STAND | - | |
| 11 | 46 53 2 312 278 | HEX BOLT - M10X50-8.8 | - | |
| - | 46 53 2 310 471 | BUSHING | - | |
| - | 46 53 2 310 473 | BUSHING - 16X10,2X12,2 | - | |
| 12 | 46 53 1 454 734 | SHACKLE | - | |
| 13 | 46 53 1 450 989 | TENSION SPRING | - | |
| 14 | 46 53 1 454 145 | BUMP STOP | - | |
| 15 | 46 53 2 312 966 | 0.02 | - | |
| 16 | 07 12 9 948 747 | BLIND RIVET - 3,2 2A | - | |
| 17 | 07 11 9 934 132 | LOCK RING - 20X1,2 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
