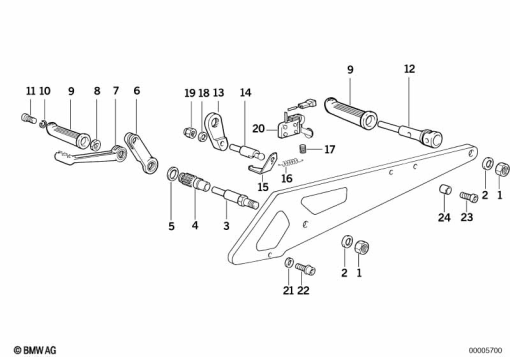

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 12 9 906 866 | HEX NUT - M12-8-ZNS3 | - | |
| 2 | 07 11 9 931 021 | WASHER - A13 (to 06/95) | - | |
| 3 | 46 51 2 315 778 | HOLDER | - | |
| 4 | 46 51 2 315 775 | CONNECTOR | - | |
| 5 | 46 51 2 315 776 | LOCK RING | - | |
| 6 | 46 51 2 315 780 | SHIFTING FORK | - | |
| 7 | 46 51 2 315 779 | LEVER | - | |
| 8 | 46 51 2 315 777 | HEX NUT | - | |
| 9 | 46 51 2 315 766 | FOOTREST | - | |
| 10 | 07 11 9 933 082 | SPRING WASHER - B6 | - | |
| 11 | 31 42 2 311 105 | FILLISTER-HEAD SCREW - M6X30-8.8-ZNS | - | |
07 11 9 919 927 | SOCKET HEAD CAP SCREWAlternative for position 11 | - | ||
07 11 9 919 927.1 | FILLISTER HEAD SCREWAlternative for position 11 | - | ||
| 12 | 46 51 2 315 767 | HOLDER | - | |
| 13 | 35 21 2 315 786 | COUPLING YOKE | - | |
| 14 | 35 21 2 315 787 | REAR BRAKE CAM | - | |
| 15 | 46 51 2 315 788 | SUPPORT | - | |
| 16 | 71 60 2 315 790 | SPRING | - | |
| 17 | 46 51 2 315 789 | 0.01 | - | |
| 18 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 19 | 07 12 9 964 675 | SELF-LOCKING HEX NUT - M8-8-ZNS | - | |
| 20 | 61 31 1 459 588 | BRAKE LIGHT SWITCH FOOT BRAKE | - | |
| 21 | 07 11 9 931 029 | WASHER - A5,3-140 HV-ZNS (to 06/95) | - | |
| 22 | 07 11 9 904 303 | FILLISTER-HEAD SCREW - M5X10-8.8-ZNNIV | - | |
| 23 | 23 11 2 322 407 | FILLISTER-HEAD SCREW - M6X20 | - | |
| 24 | 46 51 2 315 791 | BUSH - 8MM,D=12MM | - | |
| - | 23 11 2 322 407.1 | M6X20 ALLEN BOLT STAINLESS | - |
