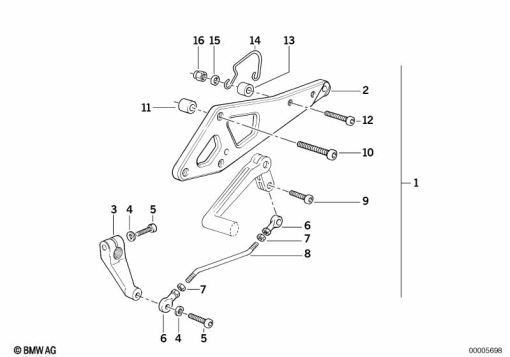

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 2 315 760 | SUPPLEMENTARY SET FOOTPEG | - | |
| - | 46 51 2 315 715 | BADGE | - | |
| 2 | 46 51 2 315 763 | FOOTREST PLATE, LEFT | - | |
46 51 2 315 764 | FOOTPEG PLATE RIGHTAlternative for position 2 | - | ||
| 3 | 23 31 1 461 998 | SHIFT LEVER | - | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 4 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 4 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 4 | - | ||
| 5 | 23 11 2 322 407.1 | M6X20 ALLEN BOLT STAINLESS | - | |
23 11 2 322 407 | FILLISTER-HEAD SCREW - M6X20Alternative for position 5 | - | ||
| 6 | 46 51 2 315 782 | JOINT LINK | - | |
| 8 | 46 51 2 315 783 | SELECTOR ROD | - | |
| 9 | 46 51 2 315 781 | COUNTERSUNK HEAD SCREW - M6X16 | - | |
| 10 | 07 11 9 901 035 | FILLISTER-HEAD SCREW - M8X55 (to 06/95) | - | |
07 11 9 919 651 | SOCKET HEAD CAP SCREWAlternative for position 10 | - | ||
07 11 9 901 029 | FILLISTER-HEAD SCREW - M8X40Alternative for position 10 | - | ||
07 11 9 919 648 | SOCKET HEAD CAP SCREWAlternative for position 10 | - | ||
| 11 | 46 51 2 315 793 | BUSH - 32MM,D=18MM | - | |
46 51 2 315 794 | BUSH - 18MM,D=18MMAlternative for position 11 | - | ||
| 12 | 07 11 9 919 625 | FILLISTER-HEAD SCREW - M6X25-8.8-ZNS (to 06/95) | - | |
07 11 9 919 628 | FILLISTER-HEAD SCREW - M6X40 (to 06/95)Alternative for position 12 | - | ||
| 13 | 46 51 2 315 792 | BUSH - 10MM,D=18MM | - | |
| 14 | 46 71 2 311 822 | 0.06 | - | |
| 15 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 16 | 07 12 9 900 191 | SELF-LOCKING HEX NUT - M6 ZNS | - | |
07 14 7 575 163 | lock nutAlternative for position 16 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
