Parts List (18)

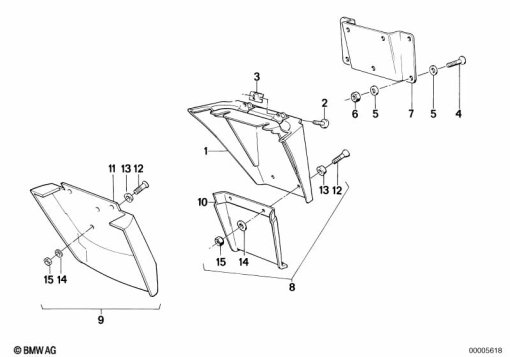

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 2 300 075 | REGISTRATION PLATE MOUNTING | 1 | |
| 2 | 07 11 9 904 176 | SHEET METAL SCREW - ST4,2X19-U2-C-H | 1 | |
| 3 | 07 12 9 904 245 | BODY NUT - ST4,2-2 | 1 | |
| 4 | 07 11 9 906 423 | FILLISTER HEAD SCREW - M6X16 | 1 | |
| 4 | 46 63 1 241 162 | EXPANDING RIVET | 1 | |
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 6 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | 1 | |
| 6 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 7 | 46 62 1 453 692 | REGISTRATION PLATE MOUNTING | 1 | |
| 8 | 46 62 2 300 239 | SET: SET MUD FLAPS, REAR | 1 | |
| 9 | 46 62 2 303 813 | SET: MUD FLAPS, REAR - GROSS | 1 | |
| 6 | 07 12 9 905 817 | HEX NUT | 1 | |
| 10 | 46 62 2 300 140 | MUD FLAPS | 1 | |
| 11 | 46 62 2 303 617 | MUD FLAPS - GROSS | 1 | |
| 12 | 46 62 2 313 516 | COUNTERSUNK HEAD SCREW - M5X16-4.8-SW | 1 | |
| 13 | 51 45 1 801 524 | WASHER | 1 | |
| 14 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 15 | 07 11 9 905 710 | HEX NUT - M5 | 1 |
