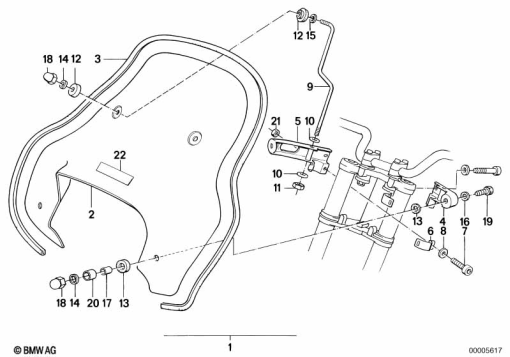

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 300 116 | SET: WINDSHIELD WITH FASTENING - 760MM | - | |
| 2 | 46 63 2 303 245 | WINDSHIELD | - | |
62 21 1 453 625 | COVERING COCKPIT PRIME COATEDAlternative for position 2 | - | ||
| 3 | 46 63 2 303 032 | EDGE PROTECTION - 1850MM | - | |
| 4 | 46 63 2 300 113 | BRACKET LEFT | - | |
| 5 | 46 63 2 300 114 | BRACKET RIGHT | - | |
| 6 | 46 63 2 300 135 | CLAMP | - | |
| 7 | 07 11 9 901 438.1 | M6X16 SS ALLEN BOLT | - | |
07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIVAlternative for position 7 | - | ||
| 8 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 9 | 46 63 2 315 225 | 0.45 | - | |
| 10 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 11 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 12 | 46 63 1 233 619 | GROMMET | - | |
| 13 | 46 63 2 300 375 | GROMMET | - | |
| 14 | 46 63 2 300 371 | WASHER | - | |
62 21 1 244 072 | WASHERAlternative for position 14 | - | ||
| 15 | 46 63 2 300 376 | WASHER | - | |
| 16 | 07 11 9 936 425 | WASHER - 6,4 (to 11/96) | - | |
| 17 | 46 63 2 300 373 | BUSH | - | |
| 18 | 46 63 2 300 370 | CAP NUT - M6 | - | |
| 19 | 07 11 9 913 477 | HEX BOLT - M6X20 | - | |
| 20 | 46 63 2 300 372 | BUSH | - | |
| 21 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 11/96) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 21 | - | ||
| 22 | 46 63 1 453 085 | LABEL RIGHT | - | |
| - | 07 14 7 575 163 | SELF-LOCKING HEX NUT | - |
