K75C (K569) | Frame, Fairing, Cases
RADIATOR TRIM/BATTERY COVER

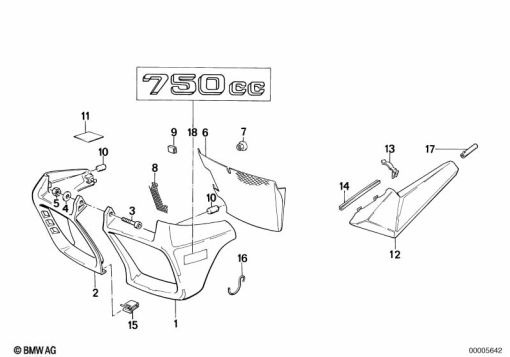

Diagram #46_0146 | 23 parts | 5 available in shop
100%
Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 453 473 | RADIATOR TRIM PANEL PRIME COATED LEFT | 1 | |
| 2 | 46 63 0 026 168 | RADIATOR TRIM PANEL PRIME COATED RIGHT | 1 | |
| 3 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | 1 | |
| 3 | 23 11 2 322 407.1 | M6X20 ALLEN BOLT STAINLESS | 1 | |
| 3 | 46 63 2 322 817 | FILLISTER-HEAD SCREW - M6X16 | 1 | |
| 4 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | 1 | |
| 5 | 07 12 9 926 512 | CAGE NUT - M6 | 1 | |
| 6 | 46 63 1 455 070 | GRID | 1 | |
| 1 | 23 14 8 372 833 | RUNNING METER, EDGE PROTECTION - 5 METER (meter) | 1 | |
| 7 | 46 63 1 455 336 | 46 63 1 455 336 | 4 | |
| 8 | 46 63 1 455 073 | GRID | 1 | |
| 9 | 41 51 6 051 760 | CLAMP | 1 | |
| 10 | 46 63 1 452 400 | GROMMET | 1 | |
| 11 | 46 63 1 455 283 | FOIL | 1 | |
| 12 | 46 63 1 453 639 | BATTERY COVER LEFT PRIME COATED | 1 | |
| 12 | 46 63 1 453 640 | BATTERY COVER RIGHT PRIME COATED | 1 | |
| 13 | 46 63 1 455 071 | SPRING | 1 | |
| 14 | 46 63 1 455 216 | EDGE PROTECTION | 1 | |
| 15 | 62 21 1 453 274 | CLAMP | 1 | |
| 16 | 46 63 1 455 397 | HOOK | 1 | |
| 17 | 52 53 1 456 054 | BUSH | 1 | |
| 18 | 51 14 2 308 883 | STICKER - 750CC BL/CR | 1 | |
| 18 | 51 14 2 322 077 | STICKER - 750CC CR/SW | 1 |
