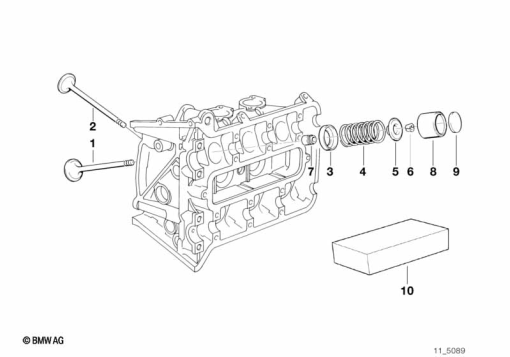

Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 34 1 460 294 | INTAKE VALVE - D=34X7.0-45° | - | |
| 2 | 11 34 1 460 201 | EXHAUST VALVE - D=30X7.0-45° | - | |
| 3 | 11 34 1 460 132 | LOWER SPRING PLATE - +0,2 | - | |
11 34 1 461 395 | LOWER SPRING PLATEAlternative for position 3 | - | ||
| 4 | 11 34 1 460 656 | VALVE SPRING | - | |
| 5 | 11 34 1 460 114 | UPPER SPRING PLATE | - | |
| 6 | 11 34 1 307 136 | VALVE COLLET | - | |
| 7 | 11 34 9 059 171 | SET: REPAIR KIT VALVE SEAL RING | - | |
| 8 | 11 32 1 460 144 | CAM FOLLOWER | - | |
| 9 | 11 32 1 460 147 | ADJUSTMENT PLATE - 2.00 | - | |
11 32 1 460 148 | ADJUSTMENT PLATE - 2.05Alternative for position 9 | - | ||
11 32 1 460 149 | ADJUSTING PLATE - 2.10Alternative for position 9 | - | ||
11 32 1 460 150 | ADJUSTING PLATE - 2.15Alternative for position 9 | - | ||
11 32 1 460 151 | ADJUSTING PLATE - 2.20Alternative for position 9 | - | ||
11 32 1 460 152 | ADJUSTING PLATE - 2.25Alternative for position 9 | - | ||
11 32 1 460 153 | ADJUSTING PLATE - 2.30Alternative for position 9 | - | ||
11 32 1 460 154 | ADJUSTING PLATE - 2.35Alternative for position 9 | - | ||
11 32 1 460 155 | ADJUSTING PLATE - 2.40Alternative for position 9 | - | ||
11 32 1 460 156 | ADJUSTING PLATE - 2.45Alternative for position 9 | - | ||
11 32 1 460 157 | ADJUSTING PLATE - 2.50Alternative for position 9 | - | ||
11 32 1 460 158 | ADJUSTING PLATE - 2.55Alternative for position 9 | - | ||
11 32 1 460 159 | ADJUSTING PLATE - 2.60Alternative for position 9 | - | ||
11 32 1 460 160 | ADJUSTING PLATE - 2.65Alternative for position 9 | - | ||
11 32 1 460 161 | ADJUSTING PLATE - 2.70Alternative for position 9 | - | ||
11 32 1 460 162 | ADJUSTING PLATE - 2.75Alternative for position 9 | - | ||
11 32 1 460 163 | ADJUSTING PLATE - 2.80Alternative for position 9 | - | ||
11 32 1 460 164 | ADJUSTING PLATE - 2.85Alternative for position 9 | - | ||
11 32 1 460 165 | ADJUSTING PLATE - 2.90Alternative for position 9 | - | ||
11 32 1 460 166 | ADJUSTING PLATE - 2.95Alternative for position 9 | - | ||
11 32 1 460 167 | ADJUSTING PLATE - 3.00Alternative for position 9 | - | ||
| 10 | 11 32 9 056 991 | CONTAINER | - |
