K75C (K569) | Engine

WATERPUMP/OILPUMP - OIL FILTER

Diagram #11_1803 | 34 parts

100%

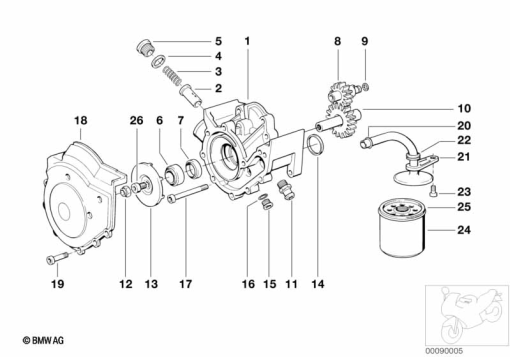

K75C (K569) WATERPUMP/OILPUMP - OIL FILTER exploded view parts diagram

Parts List (34)

#Part NumberDescriptionQty
1
11 51 1 464 900
WATERPUMP HOUSING (to 01/90)-
2
11 41 1 460 258
PISTON (to 01/90)-
3
11 41 1 460 259
COMPRESSION SPRING (to 01/90)-
4
07 11 9 963 342
GASKET RING - A20X24-CU (to 01/90)-
5
11 41 1 460 483
SCREW PLUG (to 01/90)-
6
11 41 1 460 329
SHAFT SEAL - 12X25X5 (to 01/90)-
7
11 41 1 741 870
SLIP-RING SEAL (to 01/90)-
-
11 51 1 464 902
SPACER BUSH (to 01/90)-
8
11 41 1 460 282
DRIVE SHAFT (to 01/90)-
9
11 41 1 460 328
O-RING - 7-2 (to 01/90)-
10
11 41 1 461 793
SHAFT - Z=19 (to 01/90)-
-
12 31 1 460 853
SCREW - M8X22 (to 01/90)-
11
12 61 1 277 642
OIL PRESSURE SWITCH - M12X1,5 (to 01/90)-
12
07 12 9 904 002
SELF-LOCKING HEX NUT - M8-8-ZNS3 (to 01/90)-
13
11 51 1 460 024
ROTOR (to 01/90)-
11 41 1 461 173
ROTOR (to 01/90)Alternative for position 13-
-
11 51 1 464 902
SPACER BUSH (to 01/90)-
-
11 41 1 741 870
SLIP-RING SEAL (to 01/90)-
14
11 11 1 460 392
O-RING - 27,3X2,4 (to 01/90)-
15
07 11 9 904 393
SCREW PLUG - M10X1-ST-ZNS3 (to 01/90)-
16
07 11 9 963 072
GASKET RING - A10X13,5-CU (to 01/90)-
17
07 11 9 904 509
FILLISTER-HEAD SCREW - M6X60-8.8-ZNS3 (to 01/90)-
07 12 9 903 807
ISA SCREW - M6X25-8.8-ZNS3 (to 01/90)Alternative for position 17-
18
11 51 1 460 503
PUMP COVER (to 01/90)-
19
07 12 9 901 130
ISA SCREW - M6X20-8.8-ZNNIV (to 01/90)-
20
11 41 1 460 403
O-RING - 13,3X2,4 (to 01/90)-
21
11 41 1 460 597
OIL PUMP STRAINER (to 01/90)-
22
11 41 1 460 315
RUBBER GROMMET (to 01/90)-
-
23 11 2 322 407.1
M6X20 ALLEN BOLT STAINLESS-
23
07 12 9 903 807
ISA SCREW - M6X25-8.8-ZNS3 (to 01/90)-
24
11 42 1 460 845
OIL FILTER (to 01/90)-
25
11 42 1 461 534
GASKET RING (to 01/90)-
26
12 31 1 460 853
SCREW - M8X22 (09/85 to 01/90)-
-
11 00 2 300 053
REPAIR KIT FOR OIL CHANGE-
