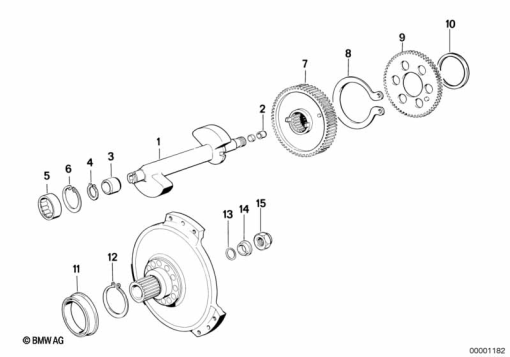

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 1 460 560 | OUTPUT SHAFT | - | |
| 2 | 11 21 1 461 539 | BUSH - 6X12X12 | - | |
| 3 | 11 21 1 460 370 | INNER BEARING RING - 22X26X2,0 | - | |
| 4 | 11 21 1 460 373 | SNAP RING - D=22MM | - | |
| 5 | 11 21 1 460 376 | NEEDLE BEARING - 26X34X16 | - | |
| 6 | 11 21 1 460 379 | SNAP RING - D=34MM | - | |
| 7 | 11 21 1 461 608 | GEAR WHEEL | - | |
| 8 | 11 21 1 460 709 | SPRING | - | |
| 9 | 11 21 1 461 085 | IDLER | - | |
| 10 | 11 21 1 461 787 | SHIM - 1,0 | - | |
11 21 1 461 788 | SHIM - 1,15Alternative for position 10 | - | ||
11 21 1 461 789 | SHIM - 1,3Alternative for position 10 | - | ||
11 21 1 461 790 | SHIM - 1,45Alternative for position 10 | - | ||
| 11 | 11 21 1 465 278 | GROOVED BALL BEARING - 50X80X16 | - | |
| 12 | 07 11 9 934 250 | LOCK RING - 50X2 | - | |
11 21 1 461 755 | LOCK RINGAlternative for position 12 | - | ||
| 13 | 11 21 1 460 467 | O-RING - 19X4 | - | |
| 14 | 11 21 1 460 696 | COMPRESSION RING | - | |
| 15 | 11 21 1 460 673 | HEX NUT - M20X1,5 | - |
