Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 1 460 689 | CRANK CASE COVER | - | |
83 19 0 404 517 | LOCTITE 5970 LIQUID SEALANT - 50MLAlternative for position 1 | - | ||
| 2 | 11 14 1 460 191 | SCREW PLUG | - | |
| 4 | 11 14 1 460 687 | GASKET | - | |
| 5 | 11 14 1 460 934 | BUSH | - | |
| 6 | 11 14 1 460 331 | SCREW | - |

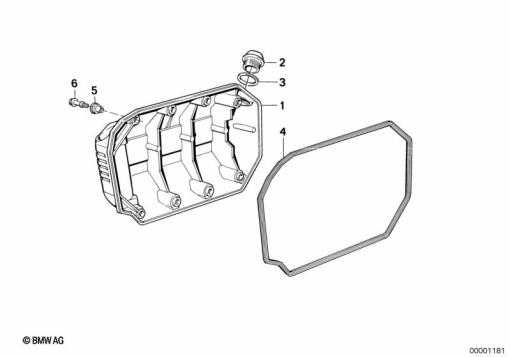

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
