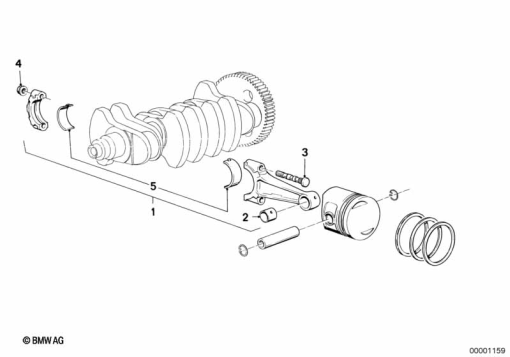

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 24 1 461 611 | CONNECTING ROD - 3XBLUE (to 08/88) | - | |
11 24 1 461 612 | CONNECTING ROD - 1XYELLOW (to 08/88)Alternative for position 1 | - | ||
11 24 1 461 613 | CONNECTING ROD - 1XWHITE (to 08/88)Alternative for position 1 | - | ||
11 24 1 461 614 | CONNECTING ROD - 1XBLUE (to 08/88)Alternative for position 1 | - | ||
11 24 1 461 615 | CONNECTING ROD - 2XYELLOW (to 08/88)Alternative for position 1 | - | ||
11 24 1 464 039 | CONNECTING ROD - 432G PL 125 MM (08/88 to 01/92)Alternative for position 1 | - | ||
11 24 1 464 040 | CONNECTING ROD - 436G PL 125 MM (08/88 to 01/92)Alternative for position 1 | - | ||
11 24 1 464 041 | CONNECTING ROD - 440G PL 125 MM (08/88 to 01/92)Alternative for position 1 | - | ||
11 24 1 464 042 | CONNECTING ROD - 444G PL 125 MM (08/88 to 01/92)Alternative for position 1 | - | ||
11 24 1 464 357 | CONNECTING ROD - 448G PL 125 MM (08/88 to 01/92)Alternative for position 1 | - | ||
11 24 1 464 376 | CONNECTING ROD - 424G PL 125 MM (08/88 to 01/92)Alternative for position 1 | - | ||
11 24 1 464 375 | CONNECTING ROD - 420G PL 125 MM (from 08/88)Alternative for position 1 | - | ||
| 2 | 11 24 1 460 341 | CONNECTING ROD BUSH | - | |
| 3 | 11 24 1 460 344 | CONNECTING ROD BOLT (to 01/92) | - | |
| 4 | 11 24 1 460 345 | 0.01 | - | |
| 5 | 11 24 1 460 067 | BEARING SHELL YELLOW - STAGE 0 | - | |
11 24 1 460 714 | BEARING SHELL YELLOW - STAGE 1Alternative for position 5 | - | ||
11 24 1 460 787 | BEARING SHELL GREEN - STAGE 0Alternative for position 5 | - | ||
11 24 1 460 788 | BEARING SHELL GREEN - STAGE 1Alternative for position 5 | - | ||
11 24 1 460 913 | BEARING SHELL WHITE - STAGE 0Alternative for position 5 | - | ||
11 24 1 460 914 | BEARING SHELL WHITE - STAGE 1Alternative for position 5 | - |
