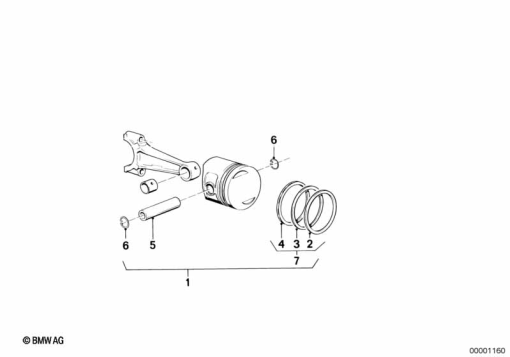

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 25 1 461 938 | PISTON - 66,97 BR2 (from 06/88) | - | |
11 25 1 461 939 | PISTON KS "B" - 66,98 BR2 (from 06/88)Alternative for position 1 | - | ||
11 25 1 461 090 | MAHLE PISTON - 66,97 (to 06/88)Alternative for position 1 | - | ||
11 25 1 461 093 | MAHLE PISTON - 66,98 (to 06/88)Alternative for position 1 | - | ||
| 2 | 11 25 1 461 037 | RECTANGRING - 1,2 MAHLE | - | |
| 3 | 11 25 1 461 036 | RECTANGRING - 1,5 MAHLE (to 06/88) | - | |
| 5 | 11 25 1 460 815 | GUDGEON PIN - KS | - | |
11 25 1 460 826 | GUDGEON PIN - MAHLEAlternative for position 5 | - | ||
| 6 | 11 25 1 460 596 | SNAP RING | - | |
| 7 | 11 25 1 461 958 | SET: REPAIR KIT PISTON RINGS - KS BR1+BR2 (from 06/88) | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
