K75C (K569) | Engine

CRANKSHAFT

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

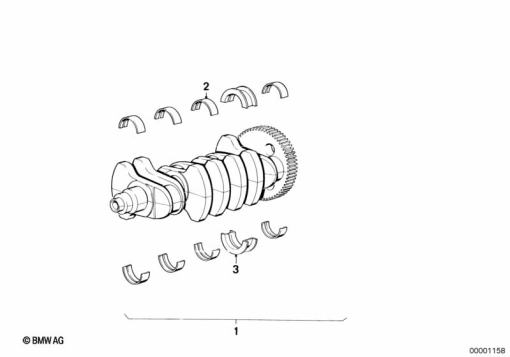

Diagram #11_4682 | 13 parts | 13 available in shop

100%

Parts List (13)

#	Part Number	Description	Qty
1	11 21 1 461 062	SET: CRANKSHAFT WITH BEARING SHELLS	1
2	11 21 1 460 008	BEARING SHELL YELLOW - STAGE 0	1
2	11 21 1 460 030	BEARING SHELL GREEN - STAGE 0	1
2	11 21 1 460 713	BEARING SHELL YELLOW - STAGE 1	1
2	11 21 1 460 731	BEARING SHELL GREEN - STAGE 1	1
2	11 21 1 460 909	BEARING SHELL WHITE - STAGE 0	1
2	11 21 1 460 910	BEARING SHELL WHITE - STAGE 1	1
3	11 21 1 460 290	BEARING SHELL YELLOW - STAGE 0	1
3	11 21 1 460 291	BEARING SHELL GREEN - STAGE 0	1
3	11 21 1 460 712	BEARING SHELL YELLOW - STAGE 1	1
3	11 21 1 460 735	BEARING SHELL GREEN - STAGE 1	1
3	11 21 1 460 911	BEARING SHELL WHITE - STAGE 0	1
3	11 21 1 460 912	BEARING SHELL WHITE - STAGE 1	1
