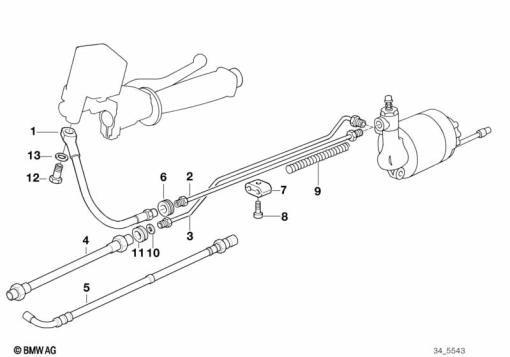

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 1 457 909 | BRAKE HOSE - L=435MM | - | |
| 2 | 34 32 1 457 876 | BRAKE PIPE | - | |
| 3 | 34 32 2 311 503 | BRAKE PIPE | - | |
| 4 | 34 32 1 458 458 | BRAKE HOSE - L=390MM (to 08/92) | - | |
| 6 | 34 32 1 236 462 | GROMMET | - | |
| 7 | 34 32 1 458 272 | HOLDER | - | |
| 8 | 34 32 1 458 252 | SCREW | - | |
| 9 | 34 32 2 310 078 | SPIRAL CONDUIT - L=1500MM | - | |
| 10 | 34 32 2 311 139 | SHIM | - | |
| 11 | 34 32 2 310 149 | GROMMET | - | |
| 12 | 34 32 1 242 205 | HOLLOW BOLT | - | |
| 13 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
